PARTS LIST FOR HYDRAULIC UNIT
for the underwater hatches type:001013 page 12

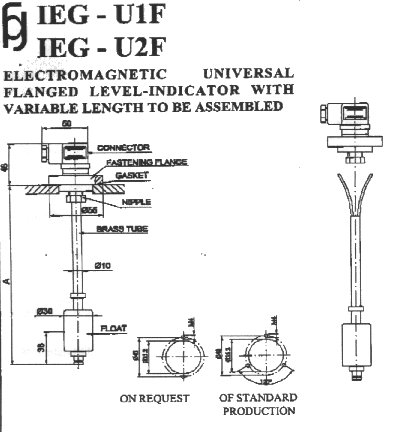

The Oil Level Switch UEGU1F
technical properties:
connection:connector CE DIN 43650 IP65 PG9
normally closed contact(close if oil level low)
allowable alternate current power :80VA
frequency:500Hz
protection degree:IP65
isolation class:10Mohm
reed contacts:Rhodium
temperature range:-20°C + 100°C
