INSTALLATION OF THE HYDRAULIC UNIT for the underwaterhatches type:001013 page 2

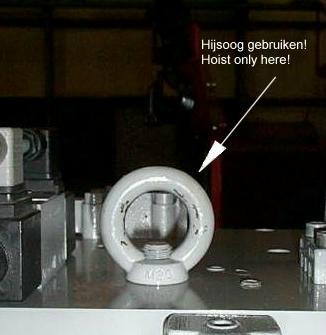

To open the crate gently lift the cover with a crow bar. Remove the bolts and nuts that fix the unit with the bottom of the box. On top of the unit, mounted on the aluminium dispenser plate, there is a hoisting eye. The weight of the unit is about 475kg. Use suitable hoisting equipment to unload the unit.
